Place of Origin: | Foshan, China |
Brand Name: | Bestar Packaging |
Certification: | NBCE |
Model Number: | Bestar granule packaging machine BSTV-450BZ |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Bestar Packaging Machine |
Packaging Details: | standard export wooden case |
Delivery Time: | 15-20 working day |
Payment Terms: | T/T, Western Union |
Supply Ability: | 30-50 sets per month |
Voltage & Power: | 220V, 50/60HZ, 6.5KW | Dimension(l*w*h): | 1480x1120x1470mm |
---|---|---|---|
Application: | Coffee Bean, Rice, Sugar, Garlic, Spaghetti, Vermicelli, Soybeans | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Field Installation,Video Technical Support |
Certification: | NBCE | Automatic Grade: | Fully Automatic, Semi-automatic |
Type: | Automatic Packing Machine | Driven Type: | Pneumatic |
Packaging Material: | Plastic, OPP/CPP, OPP/CE, PET/AL/PE, Other Laminated Films Hot Sealable Material | Packaging Type: | Stand-up Pouch, Bags, Film, Foil, Pouch, Pillow Bag/Gusset Bag/Quad Bag |
Measurement: | 100-1500g | Film Width: | 180-450mm, Max 450mm |
Bag Width: | 80-215mm | Bag Length: | Max 300mm |
Film Roll Diameter: | Standard Max.320mm | Film Thickness: | 50-120 Microns |
Warranty: | 1 Year | Function: | Feeding, Filling, Sealing |
Product Name: | Automatic Vertical Powder Packaging Machine | Packing Speed: | 20-40 Bags/min |
Machine Material: | Stainless Steel | Machine Weight: | 1150KGS |
Contact Person: | Rachel He | Mobile/whatsapp: | +86 13794095877 |
Wechat: | Rachelbestar | Skype: | Rachel Bestar |
Email: | Bestarrachel@gmail.com | Website: | Www.verticalpackagingmachinery.com |
Youtube: | Https://www.youtube.com/channel/UC8Mi7vT8rH_tlM0Jp4EATMg/ | Facebook: | Https://www.facebook.com/bestarpackagingrachel |
LinkedIn: | Www.linkedin.com/in/BestarpackagingRachel | Twitter: | Https://twitter.com/BestarRachelHe |
QQ: | 1326935862 |

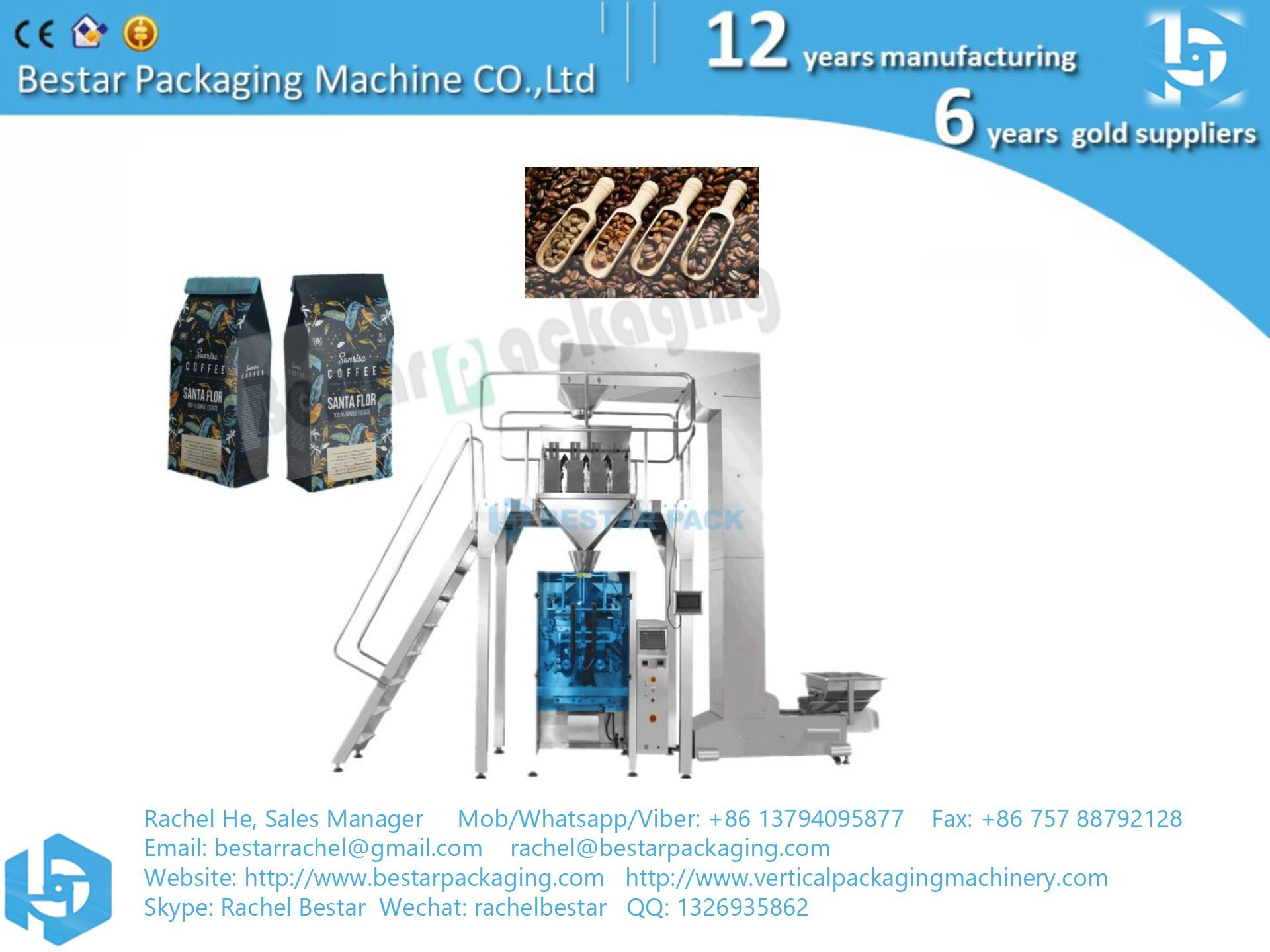

Latin America coffee bean packaging machine CE standard high quality
www.bestarpackaging.com
www.verticalpackagingmachinery.com
Bestar packing machinery manufacture Linear weigher vertical grain packing machine, 2-heads or 4-heads linear weigher optional, suitable for the grain and granule products such as: coffee bean, rice, sugar, garlic, spaghetti, vermicelli, soybeans, millet, macaroni, wheat, pumpkin seed, lentils, beans, peas, pulses, sesame seed, green grams, nut, peanut, crunchy coated peanuts, cashew nut, coconut, pistachio nuts, nutcracker, white peanut, groundnuts, mix nuts, raisins, dry fruits, biscuit crack, crack chips, granule food, biscuit, crack, snack, chip, nuts, dry fruit, sunflower kernels, dried pet food, almond, corn beans, puffed food, crispy rice, sweets, apple slice, dumplings, rice balls, hardware, medicines, vegetables, cheese chips, etc.
Machines can automatically complete all the process from feeding, weighing, filling and bag-making, date-printing to finished products outputting. Optional finished conveyor and turntable are available.
Bestar coffee bean packaging Machine electronic components
1. Bestar Machine Factory price, 100% machine quality guarantee, 100% on-time shipment guarantee.
2. Use the SIEMENS PLC control system and 7-inch color touch screen, the operation is more stable &reliable.
3. Fully automatically complete all the process from feeding, weighing, filling, packaging, sealing, date printing. High performance, packaging beautiful.
4. Servo film transporting system and color sensor, positioning accuracy, high precision digital weighing sensors.
5. Work environment quiet, low noise, saving energy.
6. Each machine gives full spare part for free as standard.
7. English and your native language touch screen display, intuitive and simple operation.
8. Suitable for kinds of Laminated films which hot sealable material roll film.
9. Packaging style diversified, pillow back sealing, Gusset Bag, quad seal bag, continuous bags, punching, etc.
10. Multiple automatic alarm protects, reducing the maximum loss.
11. It could stock eight dispose, simple to change variety.
12. Material contact parts (Packaging machine, Z type elevator, Linear Weigher, Support Platform, Bag former, etc) are to realize fast disassembly, Easy to clean and maintain.
How does the Bestar coffee bean packing machine work?
BESTAR coffee bean packing machine Main Machine Technical Parameters
BESTAR Linear Weigher Main Machine Technical Parameters | |||||
Machine type | BSTV-350BZ | BSTV-450BZ | BSTV-550BZ | BSTV-650BZ | BSTV-750BZ |
Film width Max | Max.350mm | Max.450mm | Max.550mm | Max.650mm | Max.750mm |
Film width range | 100-350mm | 180-450mm | 220-550mm | 280-650mm | 320-750mm |
Bag width | 40-165mm | 80-215mm | 100-265mm | 130-315mm | 150-365mm |
Bag length | Max.260mm | Max.300mm | Max.400mm | Max.450mm | Max.500mm |
Film roll diameter | Standard Max.320mm | Standard Max.320mm | Standard Max.320mm | Standard Max.320mm | Standard Max.320mm |
Packaging speed | 20-40bags/min | 20-40bags/min | 20-40bags/min | 15-40bags/min | 10-40bags/min |
Measurement range | 100-800g | 100-1500g | 200-2200g | 500-3000g | 500-5000g |
Film thickness | 50-120 microns | 50-120 microns | 50-120 microns | 50-120 microns | 50-120 microns |
Voltage Power | 220V, 50/60Hz, 6KW | 220V, 50/60Hz, 6.5KW | 220V, 50/60Hz, 6.8KW | 220V, 50/60Hz, 7KW | 220V, 50/60Hz, 7.2KW |
Main Machine size (mm) | (L)1121×(W)1035×(H)1200 | (L)1480×(W)1120×(H)1470 | (L)1660×(W)1200×(H)1780 | (L)1470×(W)1290×(H)1950 | (L)1930×(W)1450×(H)2100 |
Machine Weight | 960KG | 1150KG | 1320KG | 1450KG | 1500KG |
Measuring form | Linear Weigher Weighing | ||||
Packaging material | BOPP/CPP, PET/AL/PE, PET/PE, MCPP/BOPP, etc Laminated films which hot sealable material roll film. | ||||
Bag type | Pillow back sealing, Central sealing bag, Gusset Bag, stand up pouch, continuous bags (bag links), punching, etc. | ||||
Air compressor Suggest | 1. m³/min: minimum 1.0 2. Mpa:0.5-0.8 3.KW:Min 7.5KW | ||||
remark | 1. Machine Voltage standard 220V, Single Phase. Could be customized for 380V, Three Phases, etc. 2. The sizes mentioned above are the main machine sizes. |
Various bag types:
Bestar coffee bean packing machine units include the following parts:
* Vibration: For Feeding Material
* Z elevator: For Conveying Material
* Linear Weigher: For Weighing accuracy 99%
* Bestar Main machine: for automatic making bags
Bestar coffee bean packing machine Following devices are optional:
* Product conveyor
* Gusset bag device
* LDPE film device
* Nitrogen flushing device
* hole punch device (round hole/Euro hole)
* Pneumatic retainer
* Bag links device
* Additional bag former
* Additional auger screws
* Turn table
* Automatic Check Weigher
* Metal Detector Machine
Bestar Customer high evaluation:
Machine installation in clients factory:
Bestar After-sales Service:
1. With a professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Detail Manuals /&Videos of machine installation, adjusting, setting, maintenance are available for you.
3. If you need any assistance when using the machine and the videos can not help, our English technician will have video chatting with you to fix your problem online. 24 hours/365 days online technical support service.
4. Bestar engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
5. The machine will have 1-year warranty for the machine, 2-years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free post to replace the new one to you. The warranty will begin after the machine packaging & ship.
Why choose Bestar:
Bestar Packaging Machine Advantages
• With more than 12 years of expertise and experience of the packaging machine.
• Machine design & system innovation.
• Machine customized flexibility and professionalism.
• Factory price with high quality and high-efficiency machine, value for money.
• We keep stock of electronic components, touch displays, motors, etc. Ready for immediate delivery.
• Provide customized services for special orders according to specifications.
• Long-term customers are happy customers and repeated customers: The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use and reliable equipment.
Our Factory:
Bestar Packaging Machine is a comprehensive vertical machinery & flow pack machine manufacturing company. Our mission is to build simple, robust and user-friendly packaging machines that are customized to meet the needs of our customers. Bestar Packaging Machine has been involved in Research & Development of next-generation food and industrial packaging technologies since 2007. We offer a range of packaging machines and equipment that allow our customers to leverage our research and expertise to drive growth and reduce cost.
As the professional company in the area of self-developing and manufacturing of packaging machinery, we provide valuable customer: Vertical packaging machine, VFFS packaging machine with multi-head weigher, Liquid vertical packaging machine, granular packaging machine, powder packaging machine, Horizontal pillow packaging machine, flow pack machine, packaging material roll film and food metal detector, corollary equipment for packing machine.
Bestar not only provide customer packaging machine but supply clients the full set packaging solution! We have modern workshops, professional R&D team, and advanced machining equipment to meet your demands and ensure your needs within the shortest time.
Bestar packaging machine has the good reputation in the world, have been exported our machine to more than 80 countries, such as USA, Chile, Peru, Bolivia, Colombia, Mexico, Ecuador, Argentina, Australia, Spain, Germany, Vietnam, Egypt, Thailand, Burma, India, Indonesia, Malaysia, Middle East, Algeria, Morocco, Kenya, Tanzania, Uganda, Rwanda, Nigeria, Sri Lanka and so on.
Quality is Bestar culture! We have a good quality with CE Certification, OEM&ODM service and 24 hours online English technical support directly. We are looking for exclusive agents in different countries for expanding the sales channel, you are warmly welcome to contact us. Wish both of us will have a brilliant future!
Large Vertical Packaging Machine Workshop:
Horizontal Packing machine Workshop:
Counting Weighing Filling Machine Workshop
Bestar customers view:
Bestar exhibition view:
Our Certification & Business licence:
Packaging & Shipping:
FAQ:
Q1: How do I find a Packing machine model suitable for my product?
To provide you the right packing machine, before quoting, please kindly consult us and providing:
A. Your product name & product picture
B. The bag length & width for your bag/sachet/pouch size
C. How many grams for each bag?
D. Your ideal bag shape
Bestar manufacture more than100 kinds of packaging machines, depend on product and bag size and bag weight. In order to recommend the best suitable machine, we need to know the above information. If you just start this business, no bag size, we can help you to find a similar weight bag for your reference.
Q2: How about the delivery time?
All our machines are customized because different clients have different requirements, delivery will be from 15-25 working days after receiving the down payment.
Q3: Can you offer some video or pictures of the packing machine?
Yes, of course. Besides, we can help you to have your product's packaging if you are available to send us some of your product and then record a video for your reference. If a chance, we can take videos online and show you.
Q4: Is that pack many bag size in the same packing machine?
Every packing machine has its range for bag length and bag width, after getting your full details, we will calculate for you and give you an exact packaging solution, to make sure to provide you the suitable machine.
Need more machines details or videos? Please contact our Bestar team directly. Bestar packaging machine team will try the best to support you about the right packing solution. Thank you!
Contact Person: Ms. Rachel
Tel: +86 13794095877
