Home ProductsLiquid Vertical Packing Machine

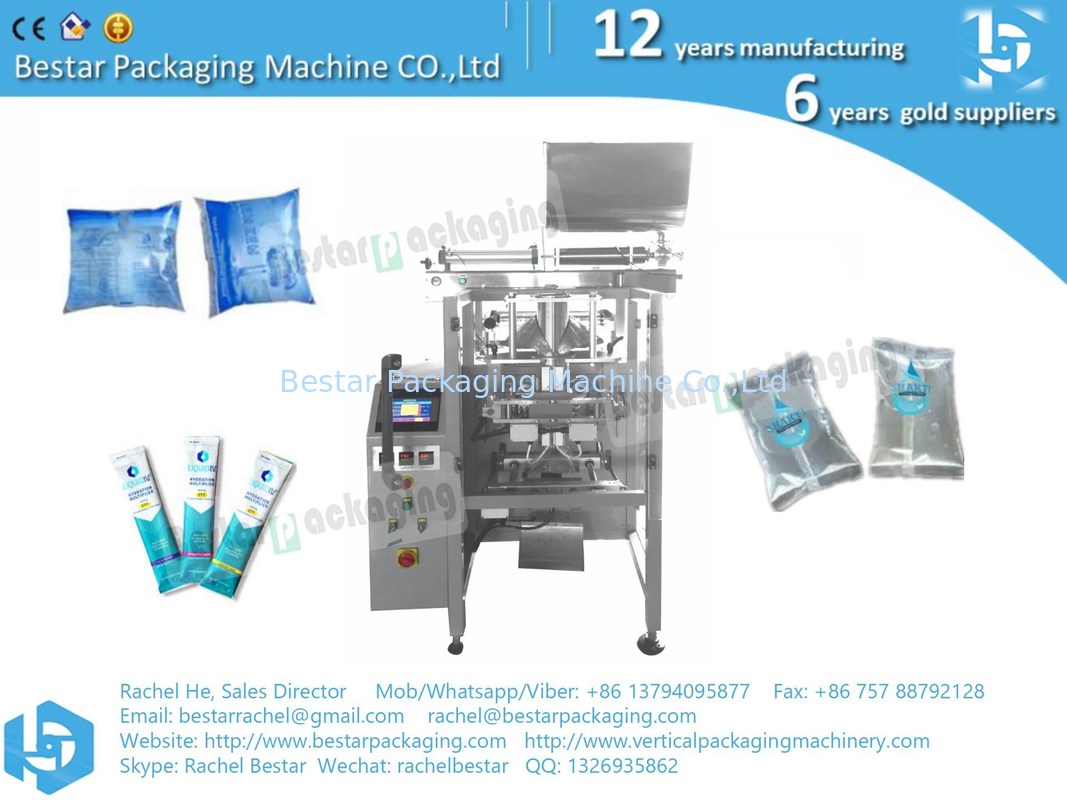

Pure water filling and packing PE bag sachet high speed machine

Pure water filling and packing PE bag sachet high speed machine

  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
  • Pure water filling and packing PE bag sachet high speed machine
Pure water filling and packing PE bag sachet high speed machine
Product Details:
Place of Origin: Foshan, China
Brand Name: Bestar Packaging
Certification: NBCE
Model Number: Bestar liquid packaging machine BSTV-450P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Bestar Packaging Machine
Packaging Details: standard export wooden case
Delivery Time: 15-20 working day
Payment Terms: T/T, Western Union
Supply Ability: 30-50 sets per month
Contact Now
Detailed Product Description
Voltage & Power: 220V, 50/60HZ, 3.5KW Dimension(L*W*H): 1480x1120x1470mm
Application: Water, Milk, Juice, Sauce, Jam, Etc After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Field Installation,Video Technical Support
Certification: NBCE Automatic Grade: Fully Automatic, Semi-automatic
Type: Automatic Packing Machine Driven Type: Pneumatic
Packaging Material: Plastic, OPP/CPP, OPP/CE, PET/AL/PE, Other Laminated Films Hot Sealable Material Packaging Type: Stand-up Pouch, Bags, Film, Foil, Pouch, Pillow Bag/Gusset Bag/Quad Bag
Measurement: 100-1500ml Film Width: 180-450mm
Bag Width: 80-215mm Bag Length: Max 300mm
Film Roll Diameter: Standard Max.320mm Film Thickness: 50-120 Microns
Warranty: 1 Year Function: Feeding, Sealing, Filling
Product Name: Automatic Vertical Liquid Packaging Machine Packing Speed: 20-42 Bags/min
Machine Material: Stainless Steel Machine Weight: 700KGS
Contact Person: Rachel He Mobile/whatsapp: +86 13794095877
Wechat: Rachelbestar Skype: Rachel Bestar
Email: Bestarrachel@gmail.com Website: Www.verticalpackagingmachinery.com
Youtube: Https://www.youtube.com/channel/UC8Mi7vT8rH_tlM0Jp4EATMg/ Facebook: Https://www.facebook.com/bestarpackagingrachel
LinkedIn: Www.linkedin.com/in/BestarpackagingRachel Twitter: Https://twitter.com/BestarRachelHe
QQ: 1326935862

Pure water filling and packing PE bag sachet high speed machine



www.bestarpackaging.com
www.verticalpackagingmachinery.com



Application:



Bestar packing machine manufacture vertical liquid packing machine, juice VFFS machinery, shampoo packaging equipment, tomato sauce filling machine, seasonings pouch making machine. Applicated for packaging liquid for 100ml-5000ml.



Machines can automatically complete all the process from feeding, weighing, filling and bag-making, date-printing to finished products outputting.



Automatic liquid packing machine, pouch water packing machine

Stainless steel packing machine for drinking water pouch pack, China factory price

Liquid pure water pouch automatic packing machine with pump

Full automatic packing machine for liquid, water pouch, pneumatic with pump

Pure water filling and packing PE bag sachet high speed machine

Pouch water filling and sealing machine automatic measuring 500ml, 1000ml, 2000ml, 5000ml

Liquid packing machine for natural drinking water, mineral freshwater

Bestar liquid packaging machine for pure drinking water packing in pouch

How to pack liquid water sachet by machine automatically



Bestar liquid packing machine pictures and packing samples

Pure water filling and packing PE bag sachet high speed machine 0

Pure water filling and packing PE bag sachet high speed machine 1

Pure water filling and packing PE bag sachet high speed machine 2

Bestar liquid packaging Machine electronic components

Pure water filling and packing PE bag sachet high speed machine 3

Bestar Machine Description:

1. Bestar Machine Factory price, 100% machine quality guarantee, 100% on-time shipment guarantee.

2. Use the SIEMENS PLC control system and 7-inch color touch screen, the operation is more stable & reliable.

3. Fully automatically complete all the process from feeding, weighing, filling, packaging, sealing, date printing. High performance, packaging beautiful.

4. Servo film transporting system and color sensor, positioning accuracy, high precision digital weighing sensors.

5. Work environment quiet, low noise, saving energy.

6. Each machine give full spare part for free as standard.

7. English and your native language touch screen display, intuitive and simple operation.

8. Suitable for kinds of laminated films which hot sealable material roll film.

9. Material touch parts (Packaging machine, liquid metering pump & tank, Bag former, etc.) are to realize fast disassembly, easy to clean and maintain.



BESTAR liquid packing machine Main Machine Technical Parameters

BESTAR Liquid Main Machine Technical Parameters
Machine type BSTV-350P BSTV-450P BSTV-550P BSTV-650P BSTV-750P
Film width Max Max.350mm Max.450mm Max.550mm Max.650mm Max.750mm
Film width range 100-350mm 180-450mm 220-550mm 280-650mm 320-750mm
Bag width 40-165mm 80-215mm 100-265mm 130-315mm 150-365mm
Bag length Max.260mm Max.300mm Max.400mm Max.450mm Max.500mm
Film roll diameter Standard Max.320mm Standard Max.320mm Standard Max.320mm Standard Max.320mm Standard Max.320mm
Packaging speed 20-45bags/min 20-42bags/min 20-40bags/min 15-40bags/min 10-40bags/min
Measurement range 100-800ML 100-1500ML 200-2200ML 500-3000ML 500-5000ML
Film thickness 50-120 microns 50-120 microns 50-120 microns 50-120 microns 50-120 microns
Voltage Power 220V, 50/60Hz, 3KW 220V, 50/60Hz, 3.5KW 220V, 50/60Hz, 3.8KW 220V, 50/60Hz, 4KW 220V, 50/60Hz, 4.2KW
Main Machine size (mm) (L)1121×(W)1035×(H)1200 (L)1480×(W)1120×(H)1470 (L)1660×(W)1200×(H)1780 (L)1470×(W)1290×(H)1950 (L)1470×(W)1290×(H)1950
Machine Weight 600KG 700KG 780KG 800KG 850KG
Measuring form Liquid Pneumatic Pump Filling
Packaging material BOPP/CPP, PET/AL/PE, PET/PE, MCPP/BOPP, etc Laminated films which hot sealable material roll film.
Bag type Pillow back sealing, Central sealing bag, Gusset Bag, stand up pouch, continuous bags(bag links), punching, etc.
Air compressor Suggest 1. m³/min: minimum 1.0 2. Mpa: 0.5-0.8 3. KW: Min 7.5KW
Remark 1. Machine Voltage standard 220V, Single Phase. Could customize for 380V, Three Phases, etc.
2. The sizes mentioned above are for the main machine.


Various bag types:



Pure water filling and packing PE bag sachet high speed machine 4



Bestar liquid packing machine units include the following parts:

* Liquid Metering Pump: Accuracy up to 99%

* Bestar Main machine: for automatic making bags



Bestar liquid packing machine Following devices are optional:

* Product conveyor
* Gusset bag device
* LDPE film device

* hole punch device (round hole/Euro hole)

* Pneumatic retainer

* Bag links device

* Additional bag former

* Additional tank

* Turn table

* Automatic Check Weigher

* Metal Detector Machine



Bestar Customer high evaluation:

Pure water filling and packing PE bag sachet high speed machine 5



Machine installation in clients factory:

Pure water filling and packing PE bag sachet high speed machine 6



Bestar After-sales Service:

1. With a professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.

2. Detail Manuals /&Videos of machine installation, adjusting, setting, maintenance are available for you.

3. If you need any assistance when using the machine and the videos can not help, our English technician will have video chatting with you to fix your problem online. 24 hours/365 days online technical support service.

4. Bestar engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.

5. The machine will have 1-year warranty for the machine, 2-years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free post to replace the new one to you. The warranty will begin after the machine packaging & ship.



Why choose Bestar:

Bestar Packaging Machine Advantages

• With more than 12 years of expertise and experience of the packaging machine.

• Machine design & system innovation.

• Machine customized flexibility and professionalism.

• Factory price with high quality and high-efficiency machine, value for money.

• We keep stock of electronic components, touch displays, motors, etc. Ready for immediate delivery.

• Provide customized services for special orders according to specifications.

• Long-term customers are happy customers and repeated customers: The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use and reliable equipment.



Our Factory:

Bestar Packaging Machine is a comprehensive vertical machinery & flow pack machine manufacturing company. Our mission is to build simple, robust and user-friendly packaging machines that are customized to meet the needs of our customers. Bestar Packaging Machine has been involved in Research & Development of next-generation food and industrial packaging technologies since 2007. We offer a range of packaging machines and equipment that allow our customers to leverage our research and expertise to drive growth and reduce cost.



As the professional company in the area of self-developing and manufacturing of packaging machinery, we provide valuable customer: Vertical packaging machine, VFFS packaging machine with multi-head weigher, Liquid vertical packaging machine, granular packaging machine, powder packaging machine, Horizontal pillow packaging machine, flow pack machine, packaging material roll film and food metal detector, corollary equipment for packing machine.



Bestar not only provide customer packaging machine but supply clients the full set packaging solution! We have modern workshops, professional R&D team, and advanced machining equipment to meet your demands and ensure your needs within the shortest time.



Bestar packaging machine has the good reputation in the world, have been exported our machine to more than 80 countries, such as USA, Chile, Peru, Bolivia, Colombia, Mexico, Ecuador, Argentina, Australia, Spain, Germany, Vietnam, Egypt, Thailand, Burma, India, Indonesia, Malaysia, Middle East, Algeria, Morocco, Kenya, Tanzania, Uganda, Rwanda, Nigeria, Sri Lanka and so on.



Quality is Bestar culture! We have a good quality with CE Certification, OEM&ODM service and 24 hours online English technical support directly. We are looking for exclusive agents in different countries for expanding the sales channel, you are warmly welcome to contact us. Wish both of us will have a brilliant future!



Pure water filling and packing PE bag sachet high speed machine 7

Pure water filling and packing PE bag sachet high speed machine 8

Pure water filling and packing PE bag sachet high speed machine 9



Our Certification & Business licence:

Pure water filling and packing PE bag sachet high speed machine 10



Packaging & Shipping:

Pure water filling and packing PE bag sachet high speed machine 11

1) Dedusting & Cleaning

2) Lubricate Drive Parts to protect machine

3) Divide Machine Into pallet cases

4) Use waterproof stretch film wrapping each part of the machine

5) Use Fumigation-free splint pallet to pack strong for protect machine

6) Stick Shipping Mark on each Cases as request

Pure water filling and packing PE bag sachet high speed machine 12



FAQ:

Q1: How do I find a Packing machine model suitable for my product?

To provide you the right packing machine, before quoting, please kindly consult us and providing:

A. Your product name & product picture

B. The bag length & width for your bag/sachet/pouch size

C. How many grams for each bag?

D. Your ideal bag shape

Bestar manufacture more than100 kinds of packaging machines, depend on product and bag size and bag weight. In order to recommend the best suitable machine, we need to know the above information. If you just start this business, no bag size, we can help you to find a similar weight bag for your reference.



Q2: How about the delivery time?

All our machines are customized because different clients have different requirements, delivery will be from 15-25 working days after receiving the down payment.



Q3: Can you offer some video or pictures of the packing machine?

Yes, of course. Besides, we can help you to have your product's packaging if you are available to send us some of your product and then record a video for your reference. If a chance, we can take videos online and show you.



Q4: Is that pack many bag size in the same packing machine?

Every packing machine has its range for bag length and bag width, after getting your full details, we will calculate for you and give you an exact packaging solution, to make sure to provide you the suitable machine.



Need more machines details or videos? Please contact our Bestar team directly. Bestar packaging machine team will try the best to support you about the right packing solution. Thank you!



Pure water filling and packing PE bag sachet high speed machine 13
